What Happens When Overprint and Knockout Settings Go Wrong? The Prepress Color Logic You Must Know

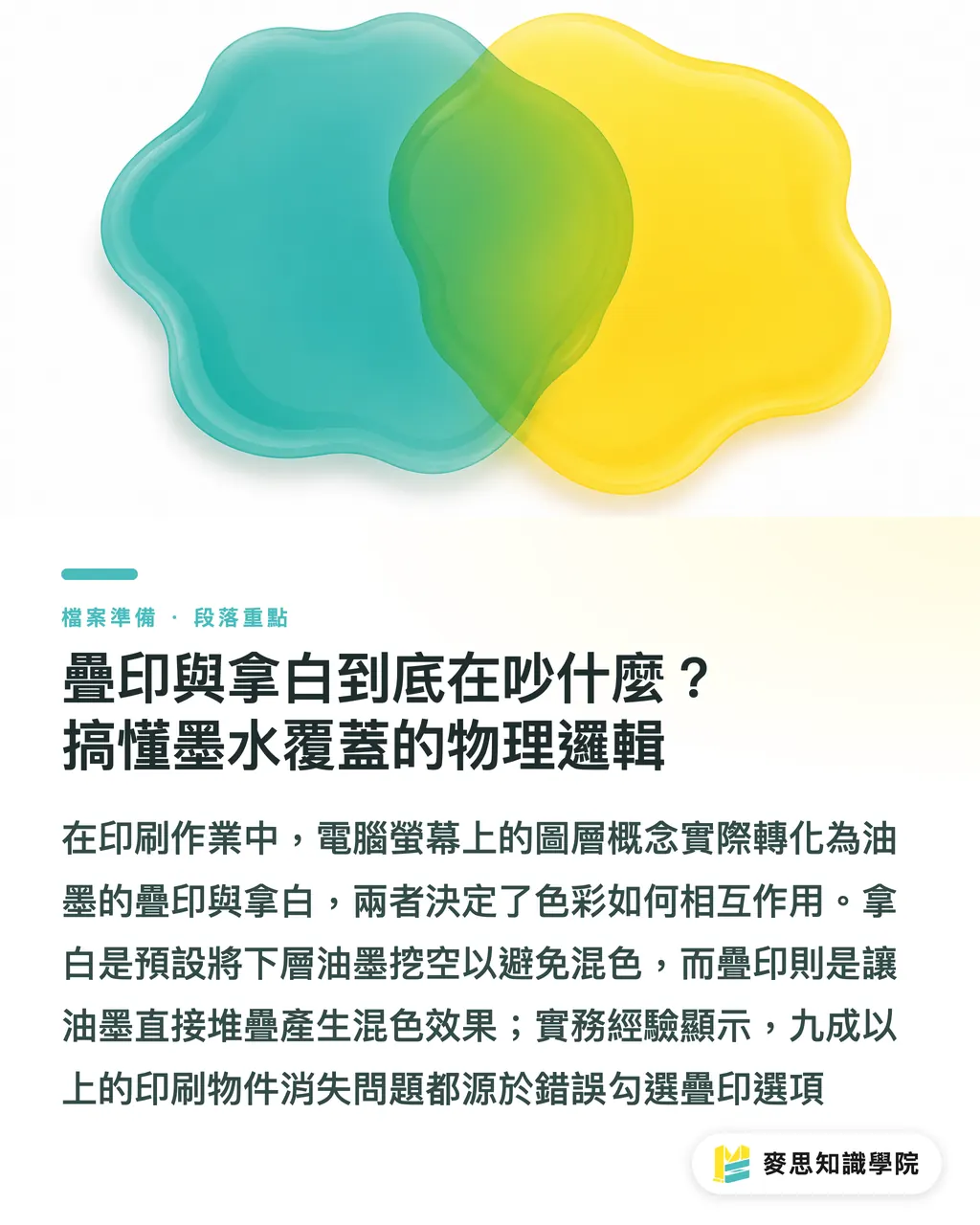

On a computer screen, design elements are "layers" stacked on top of each other, but on a printing press, it is about the order of "ink" coverage. "Knockout" is the default action in prepress software. When a top layer overlaps a bottom layer, the software automatically carves out a hole in the bottom layer that perfectly matches the shape of the top layer, and then prints the top ink onto it. "Overprint," on the other hand, allows two layers of ink to overlap directly, similar to using two colored markers on the same spot, which causes the colors to blend

・Knockout: The top object carves out the bottom layer, ensuring colors do not mix; this is the default logic for most vector software

・Overprint: The top and bottom colors mix, often used for black text to solve registration issues

・Based on my over a decade of observations on the production line, over 90% of "vanishing objects" are caused by accidentally checking the wrong overprint option

Have you ever encountered a printed black text with thin white edges? This is usually caused by "Knockout" settings combined with slight machine registration errors (typically within 0.1mm). When the background is carved out, even a tiny shift when printing the black ink will reveal the paper color. Therefore, the professional approach is to set 100% pure black (K100) text or thin lines to "Overprint," allowing the black ink to print directly over the base color. Note, however, that for large areas of "Rich Black" (e.g., C40 M40 Y40 K100), it is common practice to use "Knockout" combined with "Trapping," otherwise the total ink coverage will be too high, leading to set-off or drying issues

・Pure Black K100: Always check if "Overprint Fill" is selected to prevent white paper edges around text

・Rich Black: Because it already has other color plates as a base, it generally does not require overprinting and should use Knockout

・This is why experienced prepress operators, upon seeing large areas of pure black, will always suggest changing to Rich Black; not only for depth of color, but also to mask registration flaws

This is the most common amateur mistake that causes printing plants to reject files, and it's the moment designers want to bang their heads against the wall. In CMYK printing, white represents "no ink" (0, 0, 0, 0). If a white object is set to "Overprint," the printing press logic becomes: print a layer of "empty" ink on top of the base color. The result is that the base color remains perfectly intact, and your white headline or logo vanishes from the paper without a trace. These errors are invisible in "Normal Mode" on screen because the white still appears in the software

・White Overprint = 0% ink covering the base = Object is erased from the printed piece

・This happens especially when changing a black headline to white and forgetting to uncheck the "Overprint" setting applied to the original black text

・Practical advice: Before sending to print, perform a force selection of all objects and check the Attributes panel to see if any non-black objects have the overprint attribute applied

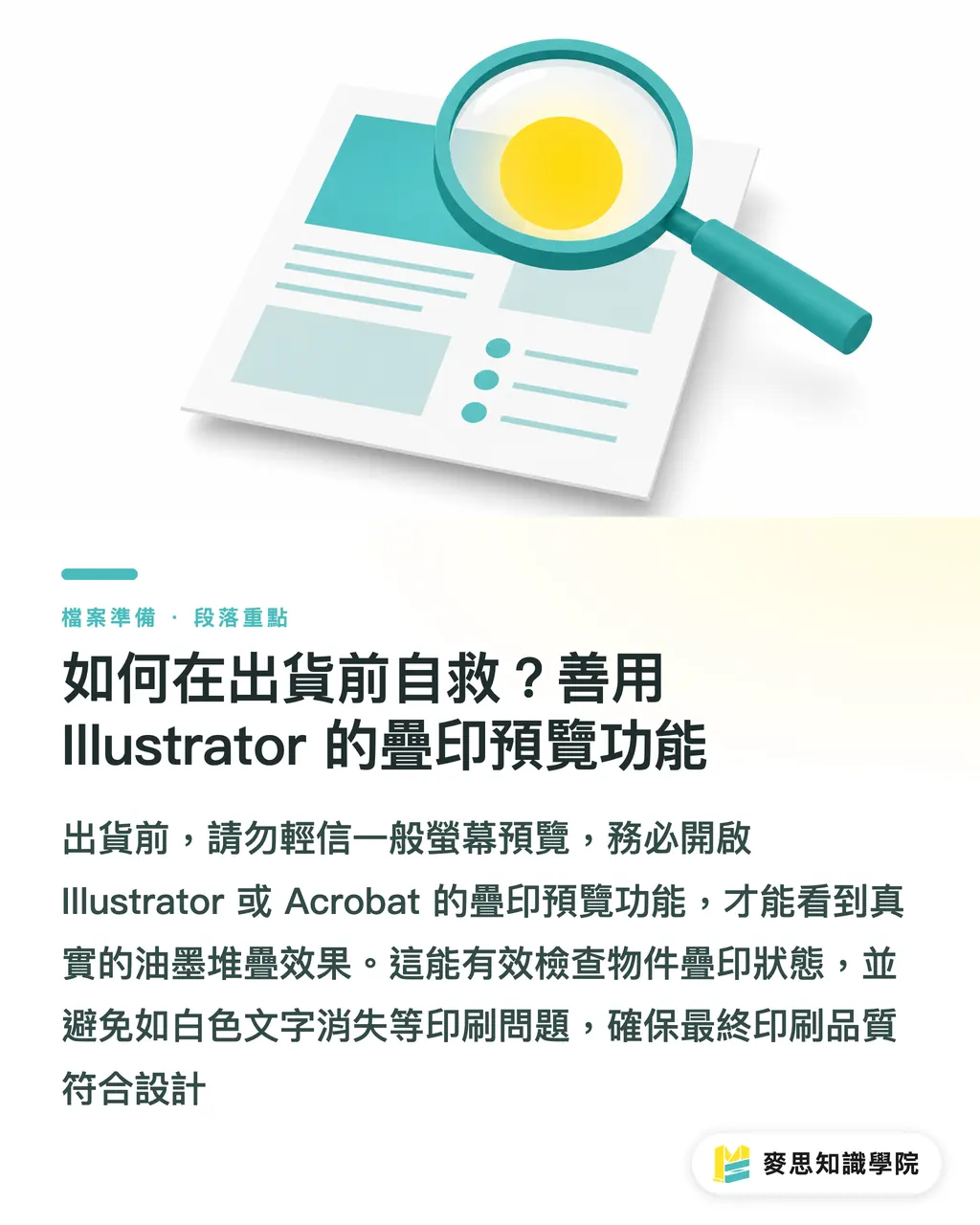

Stop trusting the general screen preview; it is just a simulated layer effect and not the final printing result. To see the true ink stacking, you must activate special modes in Illustrator or Acrobat. When checking client files, my first step is always to open the "Window → Attributes" panel to observe the overprint status of objects, and then switch to "Overprint Preview" mode

・Illustrator: Go to the "View" menu and select "Overprint Preview" to instantly make missing white text reappear

・Acrobat: Use "Output Preview" within the "Print Production" tool; this is widely recognized as the most accurate last line of defense

・Attributes Panel Check: After selecting an object, confirm that "Overprint Fill" and "Overprint Stroke" align with your design intent

・If you are working with complex illustrations, I suggest placing all fine lines that need overprinting on the top layer and applying the overprint attribute uniformly to ensure clear layering

・100% pure black text should be set to Overprint to effectively prevent white edges caused by machine registration errors

・White objects must never be set to Overprint, otherwise they will completely disappear from the printed output

・You must turn on "Overprint Preview" mode before sending to print to identify hidden color blending or vanishing issues

・Large areas of black should use Rich Black with a Knockout logic to avoid excessive ink buildup or color transparency issues

From the perspective of a printing industry consultant, overprint logic actually reflects the gap between digital design and physical production. Many designers rely too heavily on the software's default display while ignoring the physical property that "ink is transparent." As more automated Pre-flight systems are introduced, such amateur errors should decrease, but in practice, these tragedies continue to happen because designers are unfamiliar with the "Attributes" panel. For small and medium-sized enterprises, building a "three-minute pre-print checklist" is far more effective than chasing expensive automation systems, especially regarding the overprint status of K100 and white objects. I always recommend that in addition to learning software operations, designers should visit a printing plant to see the ink jetting or plate output process once. When you see with your own eyes how ink layers stack up, you will naturally understand the weight of overprint and knockout in the physical world
